Design Brief

A system was required that could securely mount a tooth sample or restorative material for experimental processing. This would include mechanical reduction and or heat applications to the sample. The mounting system needs to incorporate a integral temperature measuring sensor.


Component Design

The final design incorporated two parts, the major sample slide which was inserted in to its receptacle and a small rear plug that secured the thermocouple and also gave direct access to the rear of the mounted sample.

Annotation 2021-02-05 222642.jpg

Version 2.0

Version 2.0 was designed to test dental materials and a slot was provided for the thermocouple wire to exit on the top surface.

RenderRig-Compositecutaway02-P1rotate02.

Interchangability

All versions of the sample slide design will fit within the standardised mounting plate on each experimental station. The cross section in both the X and Z dimension is unchanged.

Screenshot 2021-02-05 at 23.20.08.jpg

Initial Concept

The initial design provided sufficient thickness to accommodate a sectioned tooth sample with a rear module which allowed insertion of a thermocouple. To aid retention of the sample material notches were incorporated to engage adhesive material.

Annotation 2021-02-05 233432.jpg

Version 1.0

Version 1.0 was intended for the mounting of human tooth samples that had been sectioned together with rear access for the thermocouple.


Version 3.0

Version 3.0 incorporates access slots to allow lateral cutting of the sample material.

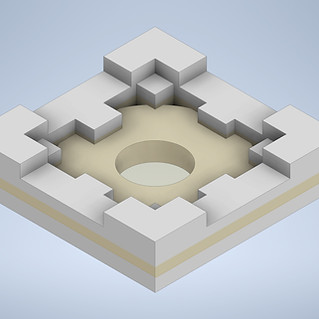

Annotation 2021-02-05 222748.jpg

Mounting Points

The mounting point can be integrated into various experimental stations, be it tooth reduction, heat measuring stations both with and without integral 'dry' waterbath mountings.
